2023 Swift Edge 486 – Manual – Available now!

2023 Swift Edge 486 – Manual – Available now!

2023 Swift Edge 486 – Manual – Available now!

Motor Caravans, New

£66,490 SOLD

  • [EXT]-Edge-486-Front-3Q-[SWIFT]

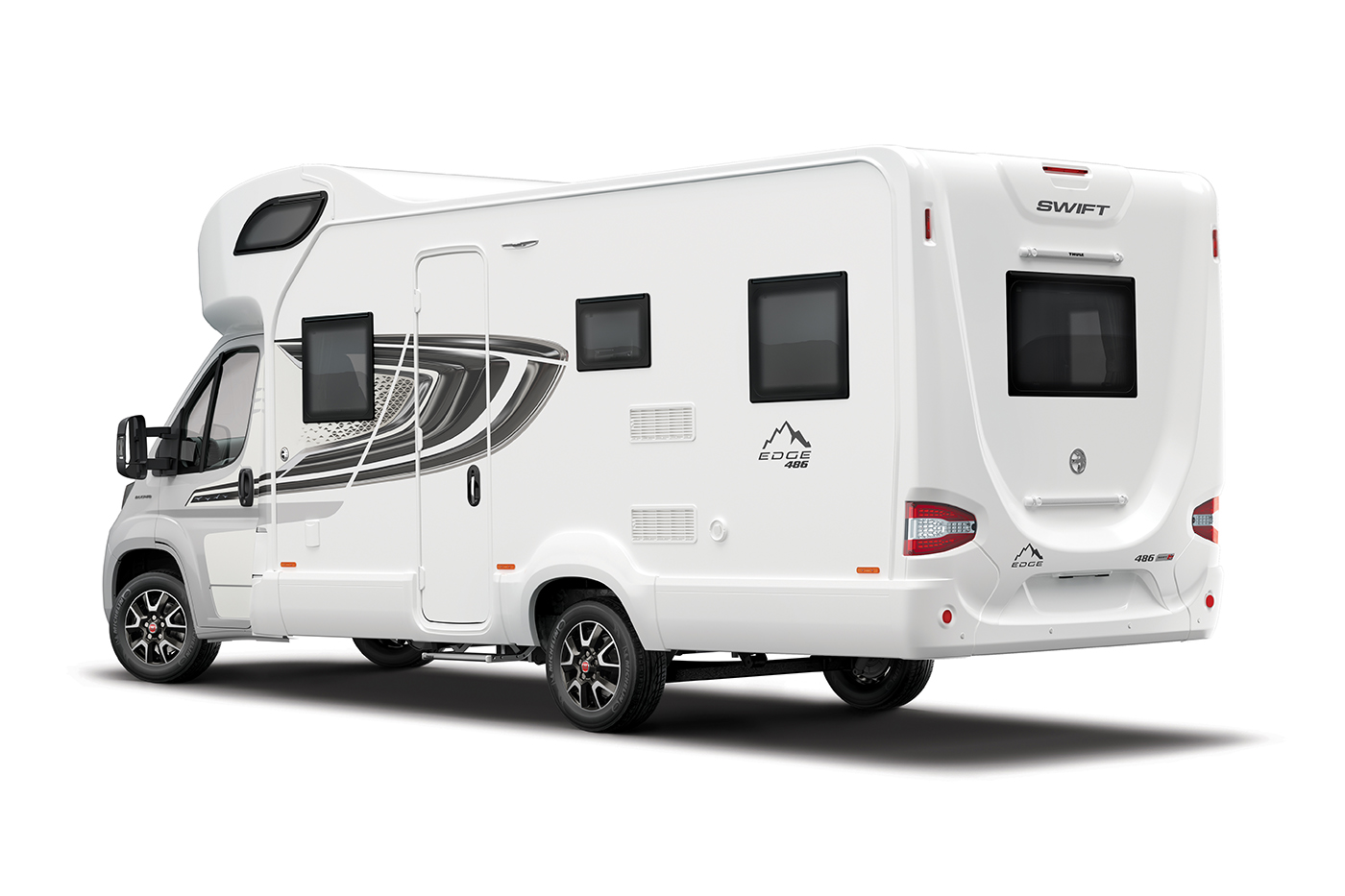

  • [EXT]-Edge-486-Rear-3Q-[SWIFT]
  • [INT]-Edge-486-Front-Lounge-[SWIFT]
  • [INT]-Edge-486-Front-Lounge-Night-[SWIFT]
  • [INT]-Edge-486-Front-To-Rear-[SWIFT]
  • [INT]-Edge-486-Kitchen-[SWIFT]
  • [INT]-Edge-486-Over-Cab-Bed-[SWIFT]

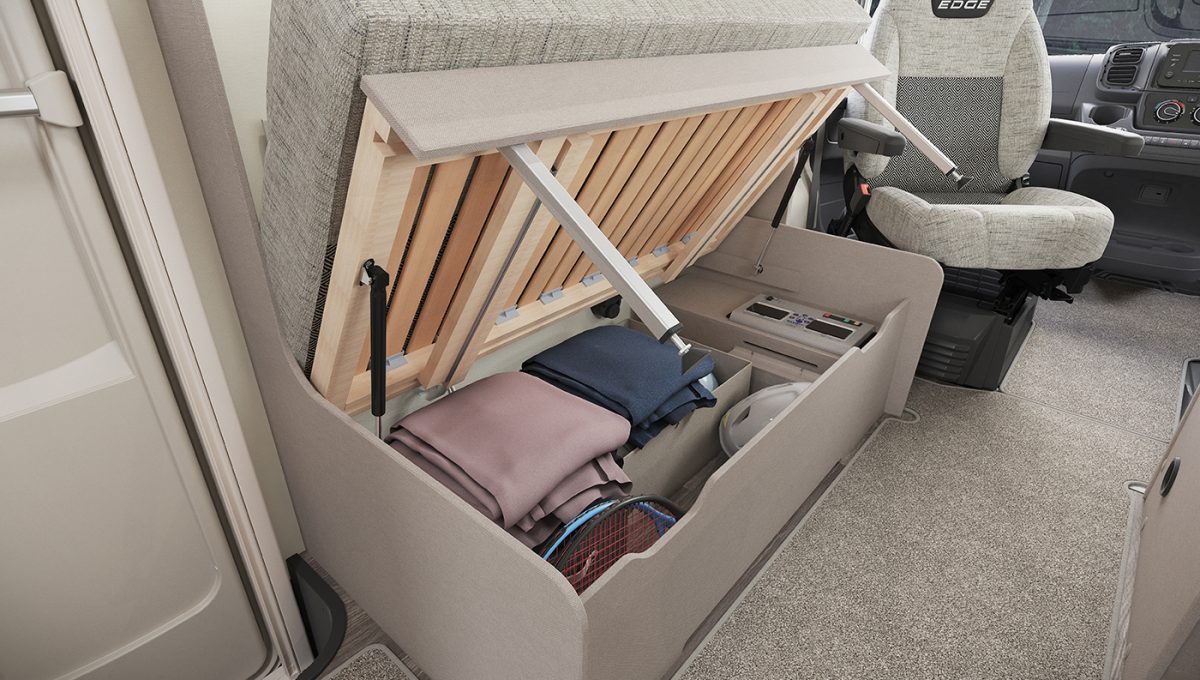

  • [INT]-Edge-486-Underseat-Storage-[SWIFT]
  • [INT]-Edge-486-Washroom-[SWIFT]

Property ID :


Year Built



Edge is an ideal first motorhome that has been primarily designed with family life in mind – inspiring a new generation of life’s adventurers and presenting an excellent level of standard equipment that has been boosted further for the 2023 season.

Built with industry leading SMART construction, all models also have a NEW FIAT Series 8 Euro 6D, 140bhp, 2.2l engine for even easier driving.

Inside the cab, the ergonomic dashboard ensures everything is close at hand with a 5” colour display, steering wheel with steering wheel controls and cruise control, 3.5” instrument cluster and infotainment system, DAB radio with USB and Bluetooth, driver and passenger airbags and cab air-conditioning.

Fresh Vittata soft furnishings and robust fittings are well suited to family life, enhanced by durable Swift AirWave foam in seats and backrests for greater comfort.

All year round comfort is assured with Truma’s dual fuel blown air heating system and high grade insulation. When rustling up a reviving meal, the fully-equipped kitchen offers plenty of workspace as well as a Dometic Series 10 fridge and a combination thermostatic oven, featuring a three-burner gas hob with electric hotplate and NEW built in flatbed microwave.

Meanwhile, the washroom has all the essentials, including a vanity unit, sink, toilet and shower. And for superb utility when on the road there is a 100l internal fresh water tank, 60l waste water tank with level sensor, as well as an 80 amp-hour leisure battery.

6 berth – 6 seatbelts

  •  Length: 7.32m
  •  Width: 2.39m
  •  Weight (MTPLM): 3500kg

Exterior & Construction

  • European Whole Vehicle Type Approval ensures compliance with strict weight, dimensions and safety regulations
  • Fiat Series 8 chassis cab in Expedition Grey, with body coloured bumper and silver grille trim
  • EN 1646-1 Grade 3 classification for heating and thermal insulation, for sub-zero ambient temperatures, confirmed by cold chamber testing
  • NEW Euro 6D Final 140bhp, 2.2 litre engine with NEW 6-speed manual gearbox and ESC & Eco Packs as standard
    • ESC includes: anti-slip regulation (ASR), roll over mitigation (ROM) and hill holder
    • ECO includes; stop and start system, smart alternator and more effective energy saving fuel pump
  • 60L fuel tank and 19L AD-blue based after treatment system
  • SMART construction with full GRP body shell:
    • Strong, moisture proof ‘PURe’ Polyurethane timberless framed body shell with HD polystyrene insulation core
    • Balanced panel 31mm sandwich side walls with GRP outer and inner skin
    • 44mm sandwich floor construction with GRP outer skin, ply upper and high rigidity Styrofoam core
    • 31mm sandwich construction hail resistant exterior GRP roof, fully bonded for extra strength and flatness, and GRP inner skin
  • GRP front high line pod with side window (466/476/486/494)
  • GRP low line pod (464)
  • White moulded skirts link to full height GRP rear panel with replaceable lower corner caps
  • Distinctive streamlined exterior front profile
  • NEW enhanced exterior graphics scheme coordinated with cab
  • NEW 16” Alloy wheels
  • Fix & Go puncture repair kit
  • Daytime running lights
  • Low energy LED lighting
    • Exclusive styled front marker lights
    • Side marker lights
    • Exclusive rear light clusters
    • High-level brake light
    • Exterior awning light
  • Dometic habitation door with 2 point locking system and integrated door retainer
  • Large exterior ‘garage’ access door (476)
  • Exterior locker (464, 466, 486 & 494)
  • Provision for 1 x 6kg and 1 x 13kg gas bottle with fitted butane/propane regulator
  • Flush fitting, double glazed, tinted acrylic windows with night latch ventilation
  • Reversing sensors
  • Bike rack fixing rails fitted to the rear
  • All models have a MTPLM of 3500kg and can be driven on a normal category B driving license (except 466 which has an MTPLM of 3650kg and cannot be driven on a normal category B driving license)


  •  Dashboard design including:
    • 5” colour display
    • Steering wheel controls
    • 3.5” Instrument cluster and infotainment system
    • Cab light, back lighting & floor lights
    • DAB radio with USB and Bluetooth
    • Central area with pocket for smartphone, double USB points and cup holders
    • Door pockets with bottle holder
    • Cab air-conditioning
    • Cruise control
    • Driver and Passenger airbags
  • ABS brakes
  • EBD (electronic brake force distribution)
  • Immobiliser with rolling code
  • Variable power steering
  • Electrically adjusted and heated wing mirrors with DAB aerial
  • Electrically operated and tinted cab windows
  • Adjustable headlamp height
  • Adjustable steering wheel position
  • Thermal cab window covers
  • Removable and bleachable cab carpet
  • Central dash mounted holder for full width tablet with USB point
  • Driver and passenger captain chairs both with:
    • Position, height and rake adjustment
    • Swivel base
    • Two armrests
    • Integrated headrest
    • Fully upholstered covers
    • Seat base surrounds

Living, Relaxing & Sleeping

  • Vittata soft furnishing scheme with two scatter cushions
  • Contemporary Oxford Tweed coloured furniture with NEW Sangallo Elm woodgrain doors
  • NEW Grey French Oak effect, high impact, scratch resistant floor
  • Sectioned removable and bleachable carpets for flexibility
  • Removable stepwell matTwo-position front seating arrangement with two forward facing travelling seats (464/494)
  • Four-position front dinette seating with two forward facing and two rear facing travelling seats (466/476/486)
  • Ergonomically shaped rear travelling seats
  • Lap and diagonal seat belts on all designated passenger seats
  • High performance, durable Swift AirWave foam in seats and backrests for greater seating and sleeping comfort
  • Seat backrest ventilation boards
  • Lounge bench seat cushions and bed mattresses supported by beech slats for extra comfort (model specific)
  • Exclusive Duvalay Duvalite Gravity Luxe mattress (fixed beds and Luton beds)
  • Luton overcab fixed beds (466, 476, 486, 494)
  • Roof light in lounge area with flyscreen and adjustable pleated blind
  • Pleated four-sided blinds and flyscreens on all windows (three-sided on Luton window)
  • Fitted curtains
  • Metal curtain tracks for room divider and washroom curtains
  • Easy action concertina door flyscreen


  • Thetford combination thermostatic oven and grill, plus a 3 burner gas hob with electric hot plate, all with electronic ignition. Hob features a glass lid with auto gas shut-off functionality
  • NEW built in flatbed microwave
  • Dometic (Series 10) 83 litre automatic energy selection fridge with 230V, gas and 12V operation
  • NEW washing up bowl
  • Kitchen worktop in Fero dark grey with textured finish and durable stainless steel sink
  • Foldaway kitchen worktop extension (except 464)
  • Vector chrome effect kitchen mixer tap
  • Wall mounted dining tables
  • Kitchen rooflight with flyscreen and blind


  • Washroom design with vanity unit, sink and shower
  • Chrome effect mixer tap for vanity and dedicated showerhead
  • Crema Bianca marble effect wallboard and concrete effect sidewall GRP
  • Thetford cassette toilet with electric flush and 18 litre wheeled tank
  • Overhead towel shelf
  • Towel robe hook
  • Micro-Heki skylight with flyscreen (except 464 which has side window)
  • 32mm thick entrance door with domestic style mortice lock and handle


  • Positive locker catches throughout for secure storage on the move with chrome handles
  • Lounge seat and bed tops gas spring assisted for easy storage access (except travelling seats)
  • Drawer storage under oven (model specific)


  • EC400 Control unit with simple controls for monitoring and managing:
    • Battery selection and battery level meter
    • Selected lighting control
    • Water system controls and tank levels
  • Dual fuel Truma Combi boiler for excellent heating efficiency
  • Digital programmable controller for heating and hot water
  • Truma gas regulator
  • Pressurised fresh water system with self-priming pump and accumulator
  • 100 litre internal fresh water tank with level sensor
  • 60 litre waste water tank with level sensor
  • Manual drain valve on waste water tanks
  • Winter pack fitted with waste water tank heater
  • Fully sealed, long life, 80 Amp-hour (Dir 2006/66/EC) leisure battery below driver’s seat
  • Mains 230V supply, via easy-access consumer unit, to sockets, fridge, heater, water heater and battery charger/transformer
  • 25 metre mains hook-up cable
  • 25 Amp/300 Watt charger/transformer for leisure batteries
  • Ultra-low energy LED lighting system throughout interior including:
    • Downlights on undersides of lockers
    • Over-locker ambient lighting
    • Strip lighting in kitchen china locker
  • A minimum of four chrome 230V sockets and dedicated USB points
  • Status 570 TV aerial
  • TV points with 230V and 12V sockets and aerial socket

Safety & Security

  • VIN CHIP™ identification system concealed within construction to deter theft and aid quick recovery
  • Single key for all habitation doors
  • Key fob operated remote central locking of cab doors
  • Smoke alarm
  • Carbon monoxide alarm

Customer Service

  • Manufacturer backed 10 year bodyshell warranty

Part exchange available – HP or PCP finance packages



  • Central Washroom
  • Double Dinette
  • Fixed Bed
  • Side Dinette

Floor Plans
